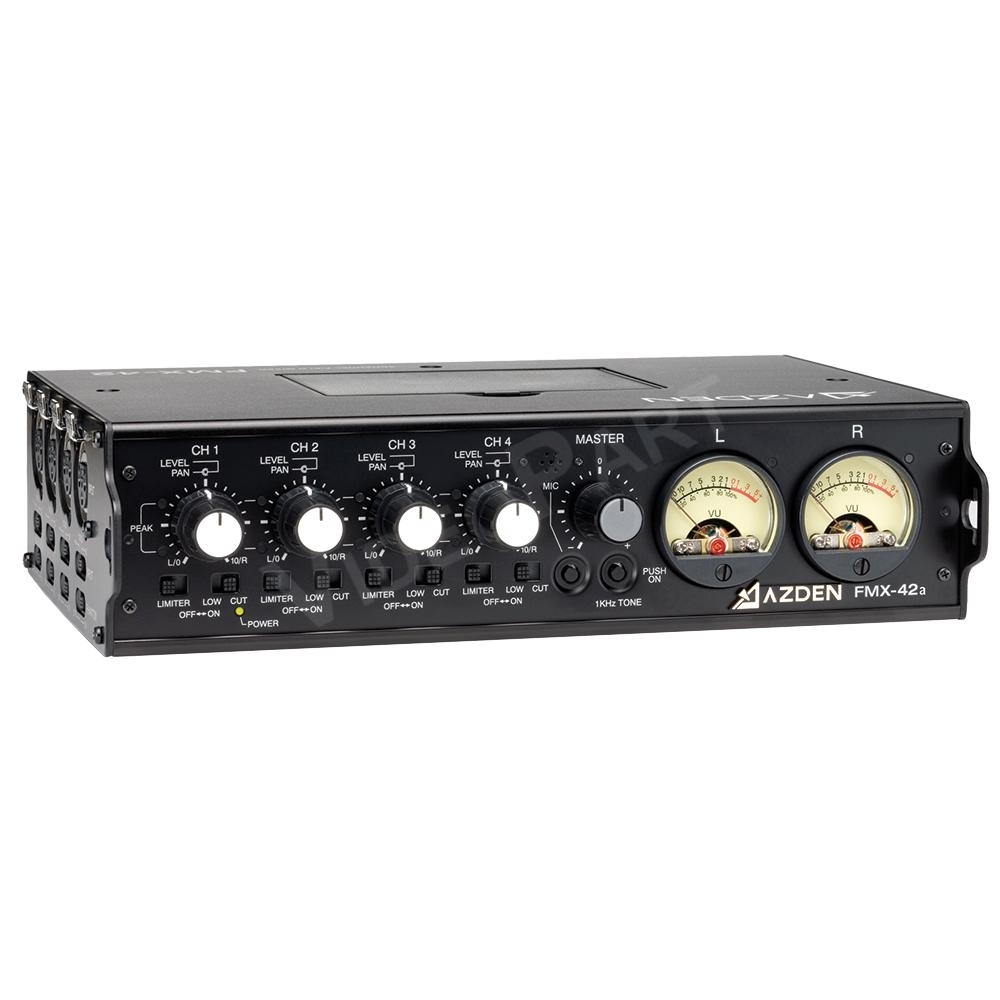

AZDEN AZDEN-FMX-42A AZDEN FMX-42A, 4 bemenetes hordozható mikrofon / vonal hangkeverő 10-pines kamera visszacsatolással

tulajdonságok:

• 4 balanced XLR line/mic inputs and pan controls
• Switchable 48V phantom power and limiting
• Professional quality VU meters
• 2 balanced XLR outputs (line/mic switchable)
• Stereo mini-jack output for DV cameras
• 10-pin & mini-jack Camera Return & headphone out with level control
• 6x AA battery powered
• Optional A/C adapter

műszaki adatok:

• • FREQUENCY RESPONSE
  • Balanced or Unbalanced Output: 20 Hz - 30 kHz (+0/-1.5 dB)
  • Monitor Output: 30 Hz - 30 kHz (+0/-2 dB)








  •
  •
  •
  •
  • GENERAL
  • Signal-to-Noise Balanced Output: -120 dBu (A weighted, input equivalent level)
  • T.H.D. Balanced Output: less than 0.005% @ 1 kHz (at LINE position +19 dBu output)
  • Phantom Power Voltage: 48V (±4V)
  • Sample Tone Frequency: 1 kHz
  • Battery Requirement: 6 Alkaline "AA"
  • Battery Runtime: Approx.10 hours (Meter Illum & Phantom Power OFF)
  • External Power: 12V DC @ 200mA
  • Dimensions: 220mmW x 160mmD x 56mmH (without protrusions)
    9"W x 6 1/2" D x 2 1/4"H (without protrusions)
  • Weight: 1,350 grams/3 lbs (without batteries)








  •
  •
  •
  •
  • CURRENT DRAIN:


  • 164mA (Meter Illum & Phantom OFF @ 9V)
    192mA (Meter Illum OFF, Phantom ON w/1 MIC @ 9V)
    125mA (Meter Illum & Phantom OFF @ 15V)








  •
  •
  •
  •

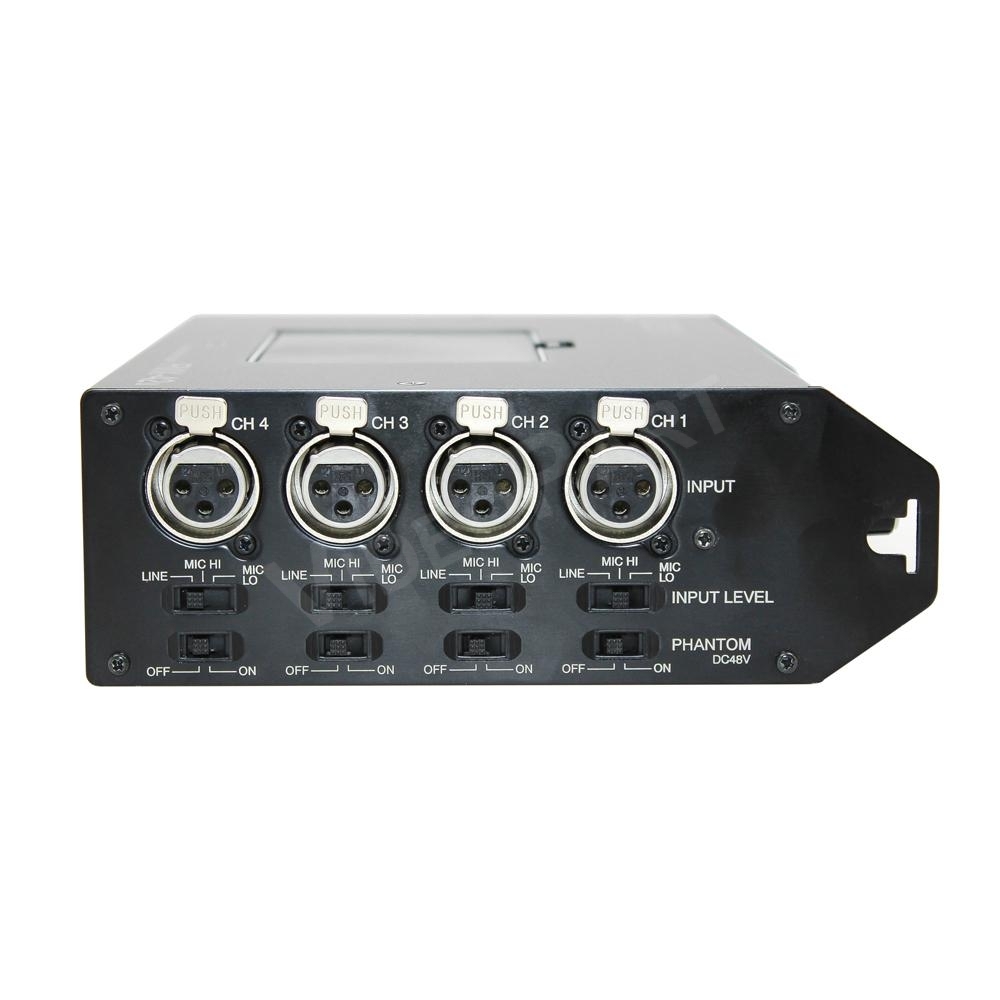

  • INPUT
  • Balanced Input: XLR 3-pin Female x 4 (CH1, 2, 3 & 4)
  • Level +4 dBu (LINE) Standard: +4 dBu (electronically balanced)
    Maximum: greater than +26 dBu
    Impedance: 20kΩ
  • -30 dBu (MIC 1) Standard: -38 dBu (electronically balanced)
    Maximum: +4 dBu
    Impedance: 2kΩ
  • -55 dBu (MIC 2) Standard: -58 dBu (electronically balanced)
    Maximum: -15 dBu
    Impedance: 2kΩ
  • High Pass Filter (HPF) 　100Hz - 6dB/oct
  • RETURN INPUTS:
  • Hirose 10-pin Female for Hirose Plug Part #RM15TD-10P
    3.5mm (1/8") Stereo Mini-Jack
    Input Level: -20 dBu - +19 dBu (unbalanced)
    Impedance: 11kΩ








  •
  •
  •
  •

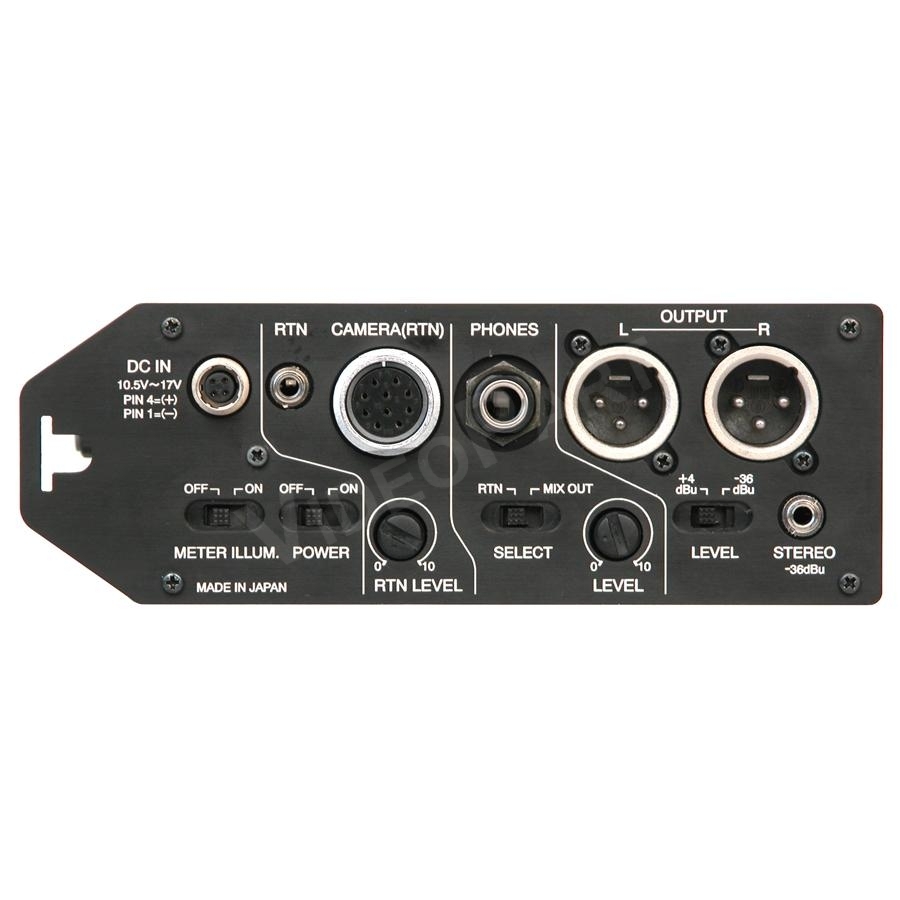

  • OUTPUT
  • Balanced Outputs: XLR 3-pin Male x 2 (Output L & R)
    Hirose 10-pin Female for Hirose Plug Part #RM15TD-10P
  • Unbalanced Output: 3.5mm (1/8") Stereo Mini-Jack
  • Monitor Output: 6.3mm (1/4") Stereo Jack








  •
  •
  •
  •
  • BALANCED OUTPUT LEVEL
  • +4 dBu Standard: +4 dBu (electronically balanced, greater than10kΩ load)
    Maximum: +20 dBu (electronically balanced, greater than 10kΩ load)
    Impedance: 600Ω
  • -36 dBu Standard: -36 dBu (electronically balanced, greater than 10kΩ load)
    Maximum: -20 dBu (electronically balanced, greater than 10kΩ load)
    Impedance: 600Ω








  •
  •
  •
  •
  • UNBALANCED OUTPUT LEVEL
  • Standard: -36 dBu (electronically balanced, greater than 10kΩ load)
    Maximum: -20 dBu (electronically balanced, greater than 10kΩ load)
    Impedance: 120Ω








  •
  •
  •
  •
  • MONITOR OUTPUT
  • Maximum: +1 dBu (32Ω load at 9V)
    16-100Ω load recommended
  • Meters - Standard Output Level: 0 VU (+4 dBu)
